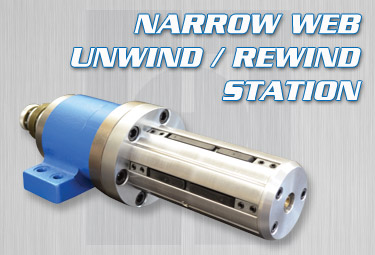

CBA-1000 Narrow Web Unwind / Rewind Station
More InfoThe Double E narrow web unwind/rewind station regulates the tension of narrow web material while providing quick roll changes and the flexibility of running multiple core sizes. Problems associated with poor tension control, such as core slippage and excessive dust, are eliminated resulting in a faster, cleaner and more efficient production process.
Features and Benefits
- Easily mounts to any section of the production line.
- Pedestal or flange mounting.
- Manual, automatic open loop or automatic closed loop tension control.
Applications
- Narrow Web Printing (add laminating, inspection, die cutting, etc.)
- Textiles (add spools)
- Form, Fill, and Seal Packaging
- Envelope Production
Strip Chuck / Shaft
- Prevents roll bounce and vibration
- Bladders are tough, dependable, and easy to replace
- Available sizes include: 1", 1.5", 1.75", 2", 2.5", 2.75", 3", 4", 50mm, and 75mm
Available Options
- Additional chuck styles
- Web guiding systems
Tension Option: Pneumatic Brake
Flexibility for manual pneumatic tension
Click here.
Click here.
Tension Option: Powder Brake
Tension Option: Mechanical Spring Brake
Manual controls for medium tension applications
Click here.
Click here.
Tension Option: Slipper Clutch
Manual operation for slow and low tension applications
Click here.
Click here.
Tension Option: Motor Driven
Precise control for rewind and unwind; requires tension control system
Click here.
Click here.
