Rotary Union Features
More Info
- Durable and dependable
- Two ball bearings eliminate vibration and wobble
- Stainless steel rotors and brass housing eliminate corrosion
- Unique seal design ensures a constant pressure
- Viton O-Ring provides a complete seal, even in high temperatures
ROTARY WATER ROTARY |
CONTINUOUS
CASTING |
IN
THE SHAFT MOUNTING |
HIGH
PRESSURE HIGH SPEED |
|||||
Max.
Pressure: 750 psi Max. Temperature: 350 °F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 - 2 |
Max.
Pressure: 150 psi Max. Temperature: 250 °F Max Speed: 100 RPM Size: 3/4" - 1½" # of passages: 1 - 2 |
Max.
Pressure: 750 psi Max. Temperature: 250 °F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure: 5700 psi Max. Temperature: 250 °F Max Speed: 1500 RPM Size: 1/4" - 1/2" # of passages: 1 |
|||||
HIGH
PRESSURE LOW SPEED |
DOUBLE
PASSAGE, HIGH PRESSURE, LOW SPEED |
FOUR
PASSAGE, HIGH PRESSURE, LOW SPEED |
SIX
PASSAGE, HIGH PRESSURE, LOW SPEED |
|||||
Max.
Pressure: 150 psi Max. Temperature: 250 °F Max Speed: 250 RPM Size: 3/8 " - 1/2" # of passages: 1 |
Max.
Pressure: 150 psi Max. Temperature: 250 °F Max Speed: 250 RPM Size: 3/8" # of passages: 2 |
Max.
Pressure: 150 psi Max. Temperature: 250 °F Max Speed: 250 RPM Size: 3/8 " # of passages: 4 |
Max.
Pressure: 150 psi Max. Temperature: 250 °F Max Speed: 250 RPM Size: 3/8 " # of passages: 6 |
|||||
ROTARY VAPOR ROTARY |
||||||||
Max.
Pressure: 120 psi Max. Temperature: 330 °F Max Speed: 500 RPM Size: 1/4" - 2" # of passages: 1 - 2 |
||||||||
ROTARY HOT ROTARY |
||||||||
Max.
Pressure: 100 psi Max. Temperature: 395°F Max Speed: 500 RPM Size: 1/4" - 2" # of passages: 1 - 2 |
||||||||
ROTARY AIR ROTARY |
IN
THE SHAFT MOUNTING |
HIGH
PRESSURE LOW SPEED |
DOUBLE
PASSAGE, HIGH PRESSURE, LOW SPEED |
|||||
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 - 1/2" # of passages: 1 |
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 " # of passages: 1 |
|||||
FOUR
PASSAGE, HIGH PRESSURE, LOW SPEED |
SIX
PASSAGE, HIGH PRESSURE, LOW SPEED |
|||||||
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 " # of passages: 4 |
Max.
Pressure / Vacuum: 150 psi - 28"Hg Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8" # of passages: 6 |
|||||||
ROTARY OIL ROTARY |
HIGH
PRESSURE HIGH SPEED |
IN
THE SHAFT MOUNTING |
HIGH
PRESSURE LOW SPEED |
|||||
Max.
Pressure: 750 psi Max. Temperature: 250°F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure: 5700 psi Max. Temperature: 250°F Max Speed: 1500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure: 750 psi Max. Temperature: 250°F Max Speed: 3500 RPM Size: 1/4" - 2" # of passages: 1 |
Max.
Pressure: 850 - 3600 psi Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8" 1/2" # of passages: 1 |
|||||
DOUBLE
PASSAGE, HIGH PRESSURE, LOW SPEED |
4
PASSAGE, HIGH PRESSURE, LOW SPEED |
6
PASSAGE, HIGH PRESSURE, LOW SPEED |
||||||
Max.
Pressure: 850 - 3600 psi Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 " # of passges: 2 |
Max.
Pressure: 850 - 3600 psi Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 " # of passges: 4 |
Max.
Pressure: 850 - 3600 psi Max. Temperature: 250°F Max Speed: 250 RPM Size: 3/8 " # of passges: 6 |
||||||
ROTARY COOL- ROTARY |
HIGH
PRESSURE, HIGH SPEED |
|||||||
Max.
Pressure: 600 - 1500 psi Max. Temperature: 250°F Max Speed: 10000 - 20000RPM Size: 3/8 " # of passges: 1 |
NOT FOR DRY RUNNING | Max.
Pressure: 600 - 1500 psi Max. Temperature: 250°F Max Speed: 10000 - 20000RPM Size: 3/8 " # of passges: 1 |
FOR DRY RUNNING |

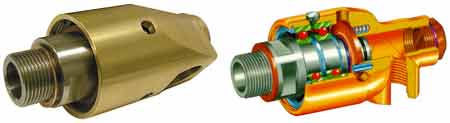

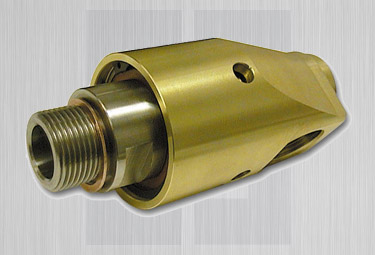

Double E Rotoflux Rotary Unions
Double E Rotoflux rotary joints are designed and manufactured to solve many of the problems commonly associated with rotary unions, including corrosion, leaking, and vibration. Double E stocks a large inventory of standard rotary unions and offers short delivery times.
Double E Rotoflux rotary unions are built using only high-grade materials, including an all-brass housing, stainless steel rotors, and tungsten carbide seals. Rotoflux unions ensure that your high tolerance machinery works the way it was designed to – without added vibration or noise.
Advanced Design
The double ball bearing design of Rotoflux unions allows the rotor to rotate freely, without vibration or wobble. The stainless steel rotors are designed with an end pilot for high speed applications to ensure concentric rotation. A flanged rotor can be used on applications that require both clockwise and counterclockwise rotation. Stainless steel springs ensure corrosion-free performance throughout the life of the rotary union. Also, a short union is available for applications with limited space.Emphasis on Seals
Double E Rotoflux unions have been designed with seals in mind. Tungsten carbide to carbon graphite seals are used for clean water, steam, air, vacuum, and hot oil applications. Tungsten carbide to tungsten carbide seals are used for applications with poorly filtered water, hydraulic oil, coolant, and abrasive fluids. All seal faces are micro-lapped for a perfect fit, ensuring that specific pressures on both sides of the seal remain in balance regardless of fluid or air pressure. A unique pin design prevents the rotation of the floating seal, and a Viton O-ring provides static sealing even in high temperatures and harsh chemical conditions.
