DLB-2000 Components

More Info
carbon fiber shaft parts
  1. Carbon fibre shafts have stainless steel air valves that will not corrode.
  2. Easy-access journal fastening system (no press fit).
  3. Gripping lugs.
  4. Proprietary corded polyprene bladder material minimizes bladder shaft failure and subsequent maintenance.
  5. Carbon fibre shaft housing can provide stiffness and strength equal to steel at a fraction of the weight.
  6. Metal sleeve protects carbon fibre shaft housing from abrasion.
  7. Hardnened steel journals custom made for your machine.

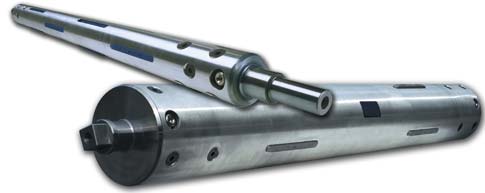

Lightweight carbon fiber expanding shafts (3" and 6" models shown)
Features - Advantages - Benefits
The Dura-Light carbon fibre shaft has many features which help to improve process and product quality. Click here
CF-1000 Carbon Fibre Through Shafts
Non-expandable core shafts ideal for use with larger diameter air bladder chucks.
Click here
Carbon Fibre Mechanical Lug Shafts
Powerful gripping force with a lightweight carbon fibre housing. Suitable for high-speed, heavyweight applications. Click here


lightweight shafts
DG-2000 Expanding Core Shafts
Lug style shafts with a steel or aluminum housing. Click here
SR-2000 Strip Core Shafts
Ideal for multiple slit rewind applications. Click here
PM-1000 Pneumatic/Mechanical Lug Shafts
Ideal for high speed and/or heavyweight applications, with the convenience of air-powered lug retraction. Click here
MS-1000 Mechanical Lug Shafts
The most aggressive gripping shaft for high speed or heavyweight applications. Fully mechanical operation. Click here
Differential Rewinding Shafts
Double E offers two types of differential shafts to ensure optimal performance. Click here
RS-2000 Expanding Reel Spool Core Shafts
Large diameter shafts for reel spool applications. Click here

DLB-2000 Features, Advantages and Benefits
FEATURE ADVANTAGE BENEFIT
Carbon Fibre Shaft Housing Lightweight Fewer shaft handling injuries lower worker’s compensation expenses and non-productive time.

Meet regulations for single person lifting.
Better ergonomics No maintenance or jamming, no contamination.
  Less deflection Reduced vibration and less roll bounce.

Heavier roll weights.
  Higher critical speed More throughput.
Protective Outer Sleeve Protects carbon fibre
shaft from abrasion.		 Longer carbon fibre
shaft life.
Proprietary Bladder Stretches less than traditional
rubber.		 Dependable lug collapse ensures
consistent, easy removal of shaft from spent cores
More resistant to
heat, punction, and abrasion.		 Far less bladder failure
and minimized maintenance.
Springless Lugs No springs to break and puncture bladder. Longer bladder life; less maintenance
Diamond pattern gripping surface with large surface area Better grip with less
slipping.
Custom Journals No press fit facilitates
journal removal.		 Bladder replacement,
though rare, is quick and easy.
Carbon Fiber Through Shaft

CF-1000 Dura-Light Non-Expanding Carbon Fibre Shafts (Through Shafts)

Dura-Light Mechanical Carbon Fibre Expanding Lug Shafts

  • For high speed and/or heavyweight applications requiring maximum torque capacity and minimum vibration.
  • Mechanical design provides the most powerful gripping force possible.
  • Activated by turning a crank (or impact wrench) that is inserted into the end of a journal.
  • Requires just five cranks for full expansion – lugs rise concentrically to center the carbon fibre shaft in the core, minimizing the roll bounce common with other types of expanding shafts.
  • Mechanical and Pneumatic/Mechanical Shafts are also available in Double E's traditional steel design.


If you're interested in traditional metal shafts, please consider

DG-2000 Air Shafts

Click on this link for more information for complementary safety chucks.
