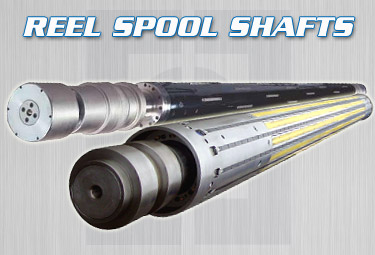

HCRS-2000 Reel Spool Expanding Strip Shafts

More Info

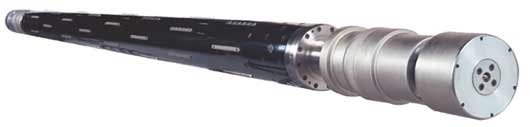

RSM Lightweight Carbon Fiber Expanding Reel Spool
  • Expanding reel spool shafts Increase critical speeds and run heavier rolls without increasing core diameter.
  • Load capacity is equal or greater than steel; wind larger rolls while keeping hoisting requirements the same.
  • Proprietary carbon fibre and aluminum construction yields unmatched strength to weight ratio at a low cost.
  • Convenient air operation with dual valve activation to guarantee roll security.
  • Reel spools are mad of high quality materials for exceptional performance and low maintenance.
  • Reduced deflection and minimized vibration.
  • Dual valve activation for fail-safe operation.
  • Low Cost / Best Value
  • Lower Inertia
  • Lighter Weight
  • Stronger than Steel
  • >Faster Critical Speeds<



RSM Lightweight Carbon Fibre Expanding Reel Spool
Lug Shaft

RSS Lightweight Carbon Fiber Expanding Reel Spool Strip Shaft
  • Higher critical speeds for increased throughput (without changing to a larger core diameter).
  • Load capacity is equal or greater than steel; wind larger rolls without increasing hoisting requirements.
  • Positive grip force yields true concentric expansion; vibration is minimized.
  • Spring activation / air retraction guarantees roll security and easy, convenient operation.
  • Independent lug action accommodates variations
    in core ID.
  • Lightweight carbon fibre housing
  • Pneumatic / mechanical operation
  • Fail-safe design




RSS Lightweight Carbon Fibre Expanding Reel Spool
Strip Shaft

RSS Lightweight Carbon Fiber Expanding Reel Spool Strip Shaft
  • Quick jumbo roll changes without tools.
  • Easily replaces existing reel spools (often utilizing existing machine and/or shaft components).
  • Increase critical speeds and run heavier rolls
    without increasing core diameter.
  • Load capacity is equal or greater than steel; wind larger rolls without increasing hoisting requirements.
  • Easy, quick, and inexpensive to replace bladders
    and/or protective strips.
  • Convenient air operation – one valve supplies all bladders, but bladders react individually to
    guarantee roll security.
  • Reduced deflection and minimized vibration.
  • Lightweight carbon fibre housing (traditional steel also available)
  • Air expansion
  • Through axle
  • Protective U.H.M.W. strips
  • Fail-safe design



RSS Carbon Fibre Expanding Reel Spool Strip Shafts
Large diameter expading strip shafts for reel spool applications. Available in metal or carbon fibre. Click here

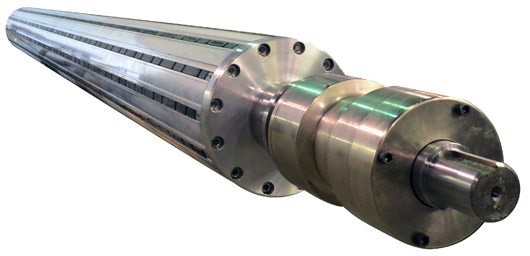

HCRS-2000 Reel Spool Expanding Strip Shafts
The HCRS-2000 is Double E’s new, high-value large diameter reel spool strip shaft. It uses a unique design that features a carbon fibre body with an aluminum exterior.Click here


reel spool
SR-2000 Strip Core Shafts
Ideal for multiple slit rewind applications. Click here
DLB-2000 Carbon Fibre Expanding Core Shafts
High strength, lightweight air shafts reduce the chance of operator lifting injuries. Click here
PM-1000 Pneumatic/Mechanical Lug Shafts
Ideal for high speed and/or heavyweight applications, with the convenience of air-powered lug retraction. Click here
MS-1000 Mechanical Lug Shafts
The most aggressive gripping shaft for high speed or heavyweight applications. Fully mechanical operation. Click here
Differential Rewinding Shafts
Double E offers two types of differential shafts to ensure optimal performance. Click here


Non-Expanding Reel Spools

Traditional non-expanding reel spools are also available from Double E, in lightweight carbon fibre or steel. If you need a large diameter shaft for jumbo reel winding, Double E is your solution.

If you need a high strength, lightweight, air shaft please consider:

Dura-Light Carbon Fibre Air Bladder Shafts
